Manufacture a full range of deep groove ball bearings. These bearings are the most common type and are used in a wide variety of applications.

Single-Row Deep Groove Ball Bearings

Pressed Steel Cages

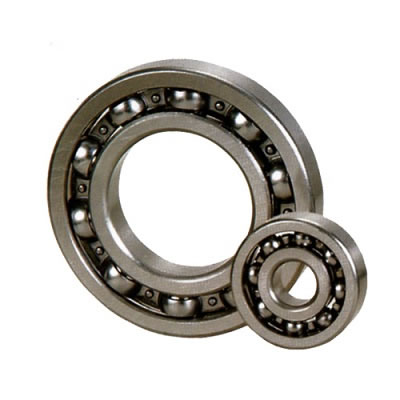

Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.

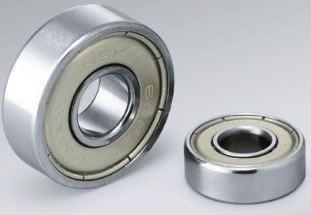

In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.

For big deep groove ball bearings, machined brass cages are used.

Machined cages are also used for high speed applications.

Extra Small Ball Bearings and Miniature Ball Bearings

Miniature and instrument ball bearings can be divided into two basic types, deep groove and angular contact. The first (deep groove) can be further divided into the following five classes depending on their design details:

Standard type

Flanged outer ring

Extended inner ring

Expanded type in which one ring has a radial thickness that is larger than normal compared with the bearing width.

Thin section type in which both rings are extra thin in the radial direction. They can also be classified as: open, shielded, or sealed.

Maximum-Type Ball Bearings

Maximum-Type ball Bearings contain a larger number of balls than normal deep groove ball bearings because of filling slots in the inner and outer rings. Because of their filling slots, they are not suitable for applications with high axial loads. BL2 and BL3 types of bearings have boundary dimensions equal to those of single-row deep groove ball bearings of Series 62 and 63 respectively. Besides the open type, ZZ type shielded bearings are also available. When using these bearings, it is important for the filling slot in the outer ring to be outside of the loaded zone as much as possible. Their cages are pressed steel.

Magneto Bearings

The inner groove of magneto bearings is a little shallower than that of deep groove bearings. Since the outer ring has a shoulder on only one side, the outer ring may be removed. This is often advantageous for mounting. In general, two such bearings are used in duplex pairs. Magneto bearings are small bearings with a bore diameter of 4 to 20 mm and are mainly used for small magnetos, gyroscopes, instruments, etc. Pressed brass cages are generally used.

•

  W22R105CL

    Bearings types W22R105CL Old types W22R105CL Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) ***mm ***mm ***mm Brand OEM Categories Water Pump Bearings Place of&n

•

  VKBA 3676

  Bearings types    VKBA 3676 Old types    VKBA 3676 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) 25mm 55mm 48mm Brand OEM Categories Wheel Bearings Ki

•

  B25-157 DTA

  Bearings types B25-157 DTA Old types B25-157 DTA Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) 25mm 68mm **mm Brand OEM Categories Deep Groove Ball Bearings,&nbs

•

  40TM18

    Bearings types 40TM18 Old types 40TM18 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) 40mm 80mm **mm Brand OEM Categories Deep Groove Ball Bearings, Single&nbs

•

  B25-157

    Bearings types B25-157 Old types B25-157 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) 25mm 68mm **mm Brand OEM Categories Deep Groove  Ball Bearings, Si

•

  28BCS18

  Bearings types 28 BCS 18  Old types 28 BCS 18  Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) 28mm ***mm 18mm Brand OEM Categories Deep Groove

•

  62312-2RS1

    Bearings types 62312-2RS1 Old types 62312-2RS1 Dimensions - d (inside diameter) Dimensions - D (outside diameter) Dimensions - B(width) 60.00mm 130.00mm 46.00mm Brand OEM Categories Deep Groove Ball Bearings

•

  6228/C3

  6228/C3  bearings stock supply, Saab bearing technology co., ltd has much stock .we export  6228/C3  to many country and areas. Duo to good price, high quality and short delivery time, we get praise from our purchaser. If you are interesting in  6228/C3  , please feel free to contact us.   Saab bearing tec

•

  568322

  568322  bearings stock supply, Saab bearing has much stock . we export 568322  to many country and areas. Due to good price, high quality and short delivery time, we get praise from our purchaser. If you are interesting in  568322  , please feel free to contact us.   Saab bearing technology co., lt

•

  801794B

  Designation: 801794 B  Type: Radial Taper Roller Bearings. Single row Tyson and non standard. Complete. (65X150X48). 801794B  bearings stock supply, Saab bearing technology co., ltd has much stock . we export 801794B  to many country and areas. Duo to good price, high quality and short delivery

•

  561067B

  F561067B  bearings stock supply, Saab bearing technology co., ltd has much stock . we export  561067B  to many country and areas. Duo to good price, high quality and short delivery time, we get praise from our purchaser. If you are interesting in 561067B  , please feel free to contact us.   Saab bearing tech

•

  805015

  805015  bearings stock supply, Saab bearing technology co., ltd has much stock . we export 805015  to many country and areas. Duo to good price, high quality and short delivery time, we get praise from our purchaser. If you are interesting in  805015  , please feel free to contact us.   Saab bearing technolo

•

  bearings 98205

  SKF 98205  bearings stock supply, shandong kaifa bearing has much stock .we export  98205  to many country and areas.  Due to Good price, high quality and short delivery time, we get praise from our purchaser. Brand Name:OEM Model:98205 Classes:Deep groove ball bearings Details: single row, unsealed Pri
